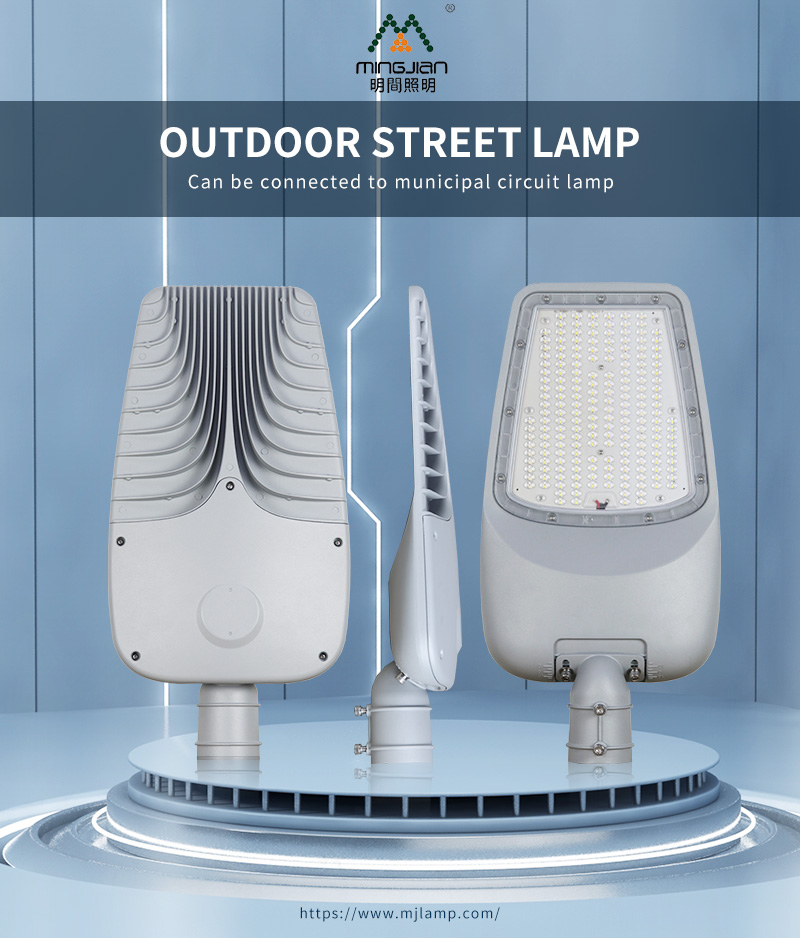

MJLED-2023A/B 100W-240W New Patent Aluminium LED Street Light Fixture

Short Description:


Product Detail

Product Tags

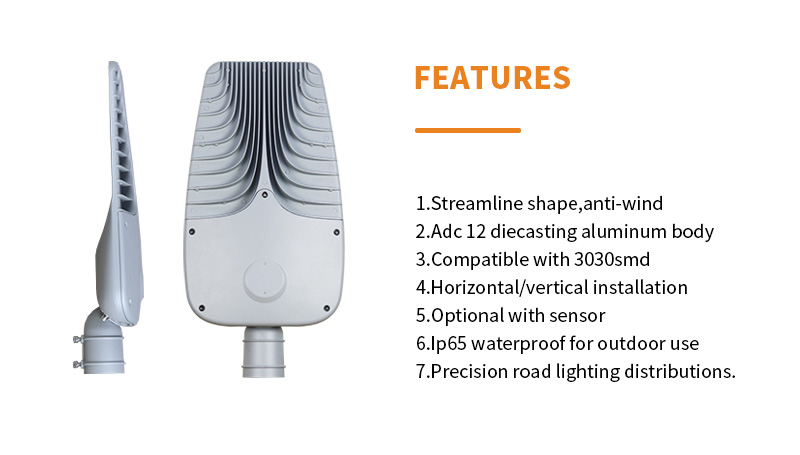

Product Features

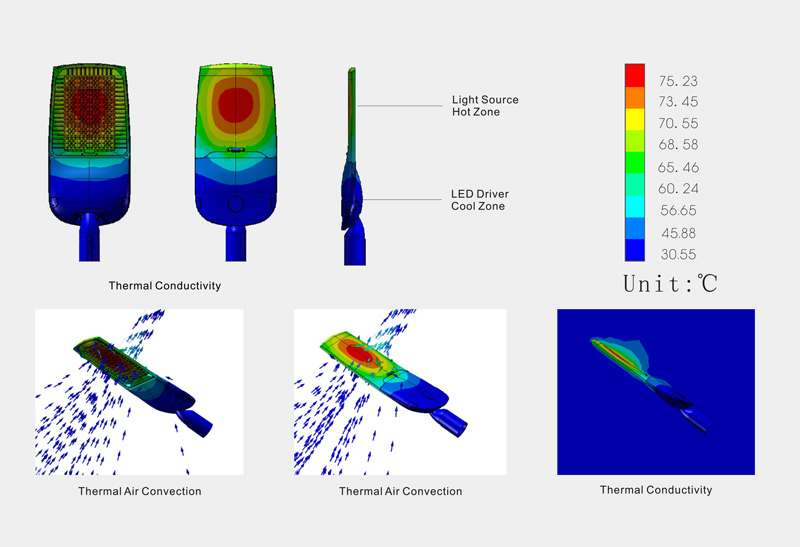

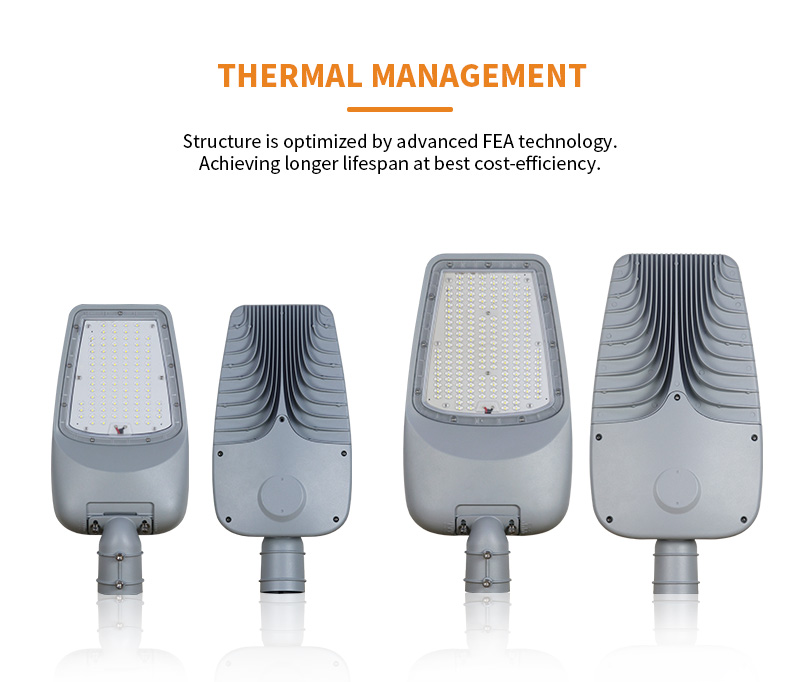

Structure is optimized by advanced FEA technology. Achieving longer lifespan ata best cost-efficiency.

1. streamline shape, anti-wind
2. ADC-12 Die-cast aluminum material fixture body with plastic sprayed that is good anti-corrosion performance;

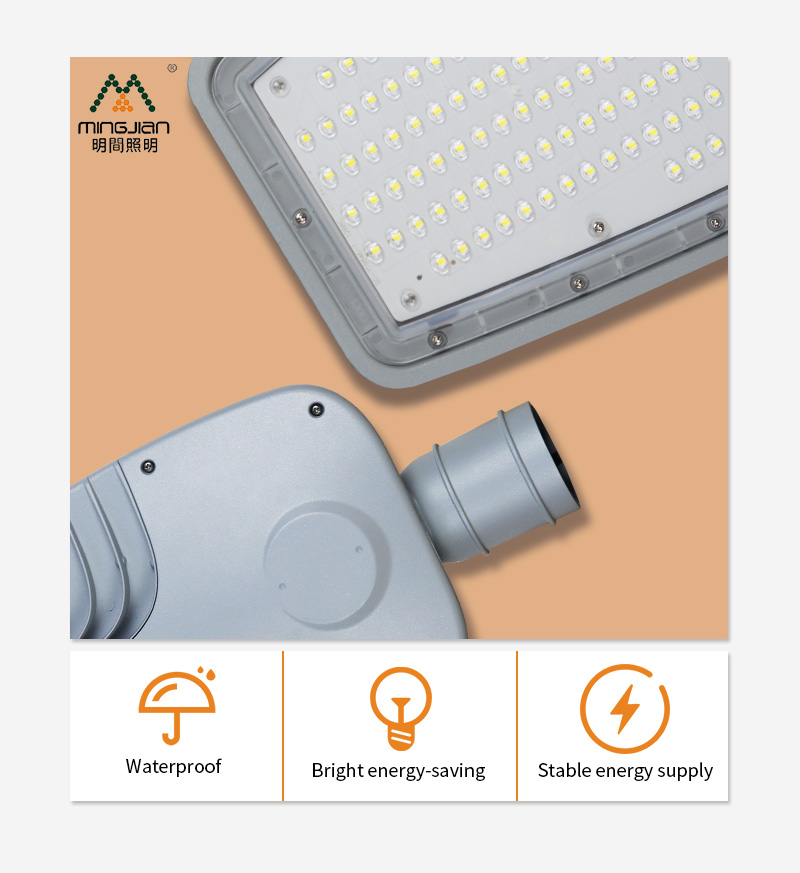

3. Exquisite structure waterproof design, protection level up to IP66;
4. A light controller can be installed to facilitate light control and other intelligent controls;
5. With movable handle, the installation angle can be adjusted from 0-90°; the lamp housing can be opened manually, and the power will be automatically cut off, which is convenient for maintenance;

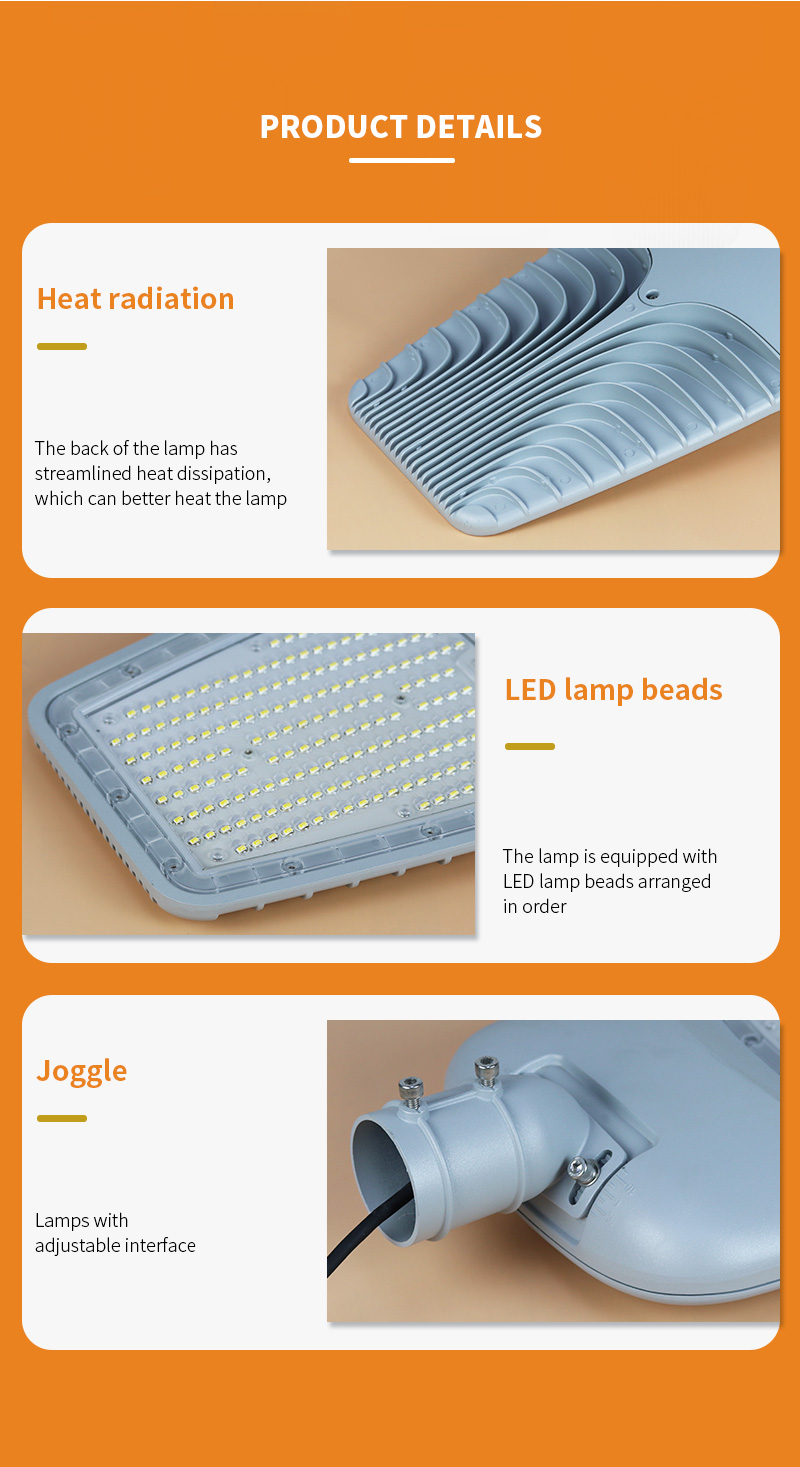

6. Using LUMILEDS SMD3030 light source, and high-performance constant current drive, the overall performance is stable, high luminous efficiency, low luminous attenuation, and long service life.

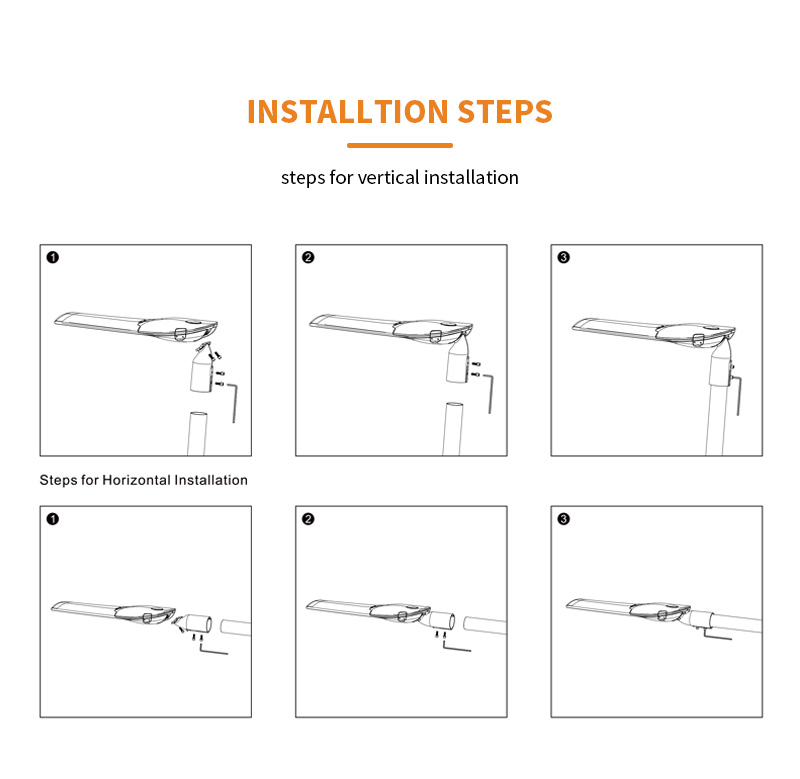

7. Horizontal/vertical installation

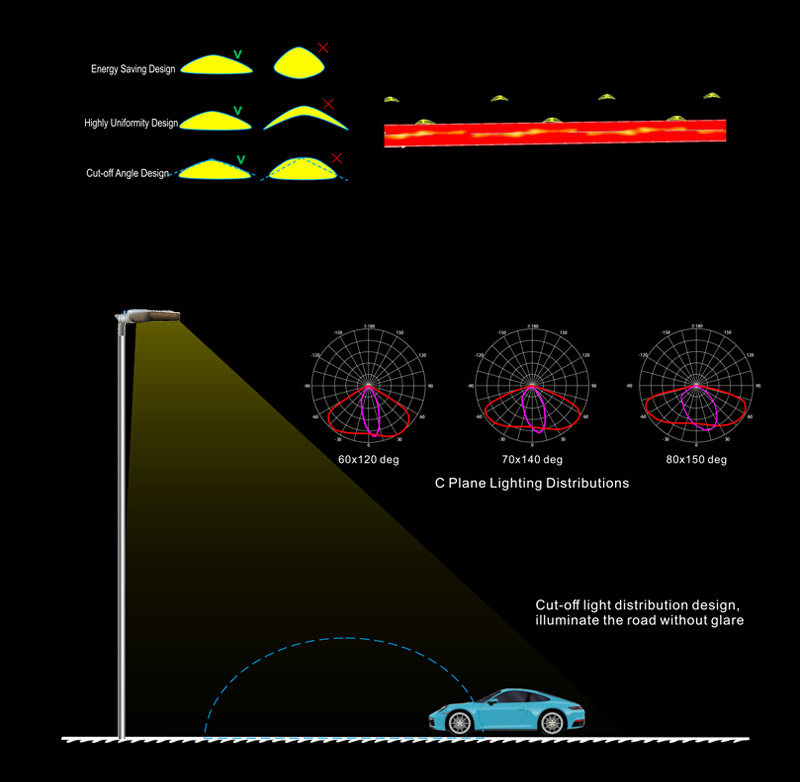

8. precision road lighting distributions

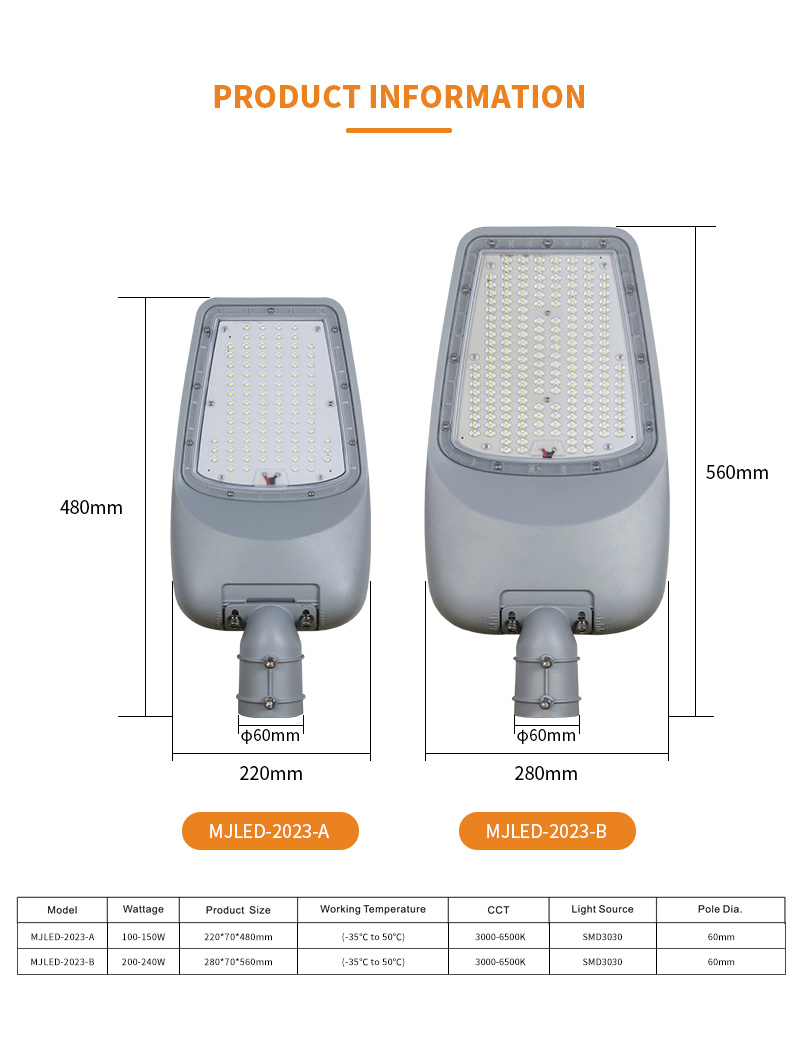

Product Parameter

Model No.

Power

Driver

Input Voltage

LED Type

Material

Install spigot

Product Dimension

Weight

MJLED-2023A

100W-150W

MW-XLG
5y warranty

AC220-240V,
50/60Hz

Lumileds 3030 chip

Die-casting ALU.+
Tempered glass

60mm

220x70x480mm

CRI: Ra>70

MJLED-2023B

200W-240W

MW-XLG
5y warranty

AC220-240V,
50/60Hz

Lumileds 3030 chip

Die-casting ALU.+
Tempered glass

60mm

280x70x560mm

CRI: Ra>70

MJLED-2023 (1) MJLED-2023 (2) MJLED-2023 (3) MJLED-2023 (4) MJLED-2023 (5) MJLED-2023 (6) MJLED-2023 (7) MJLED-2023 (8) MJLED-2023 (9) MJLED-2023 (10) MJLED-2023 (11) MJLED-2023 (12)

Factory Photo

Zhongshan Mingjian Lighting Co., Ltd. is a professional manufacturer specializing in the production and sales of high-quality outdoor lighting street lamps and engineering supporting facilities. Main production: smart street lamp, 0non-standard cultural custom landscape lamp, Magnolia lamp, sculpture sketch, special-shaped pull pattern lamp pole, LED street lamp and street lamp, solar street lamp, traffic signal lamp pole, street sign, high pole lamp, etc. it has professional designers, large-scale laser cutting equipment and two lamp pole production lines.

Factory Photo-11
5-3 Factory Photo
Factory Photo-14

FAQ

1. What are your prices?

Our prices are subject to change depending on supply and other market factors. We will send you an updated price list after your company contact us for further information.

2.Do you have a minimum order quantity?

No MOQ required, sample checking provided.

3.How long is the sample production time?

Normally around 5-7 work days, except for special cases.

4.Can you provide IES file?

Yes, we can. Professional lighting solution is available.

5.What kinds of payment methods do you accept?

You can make the payment to our bank account or Western Union :

30% deposit in advance, 70% balance before delivery.
